Compact roll forming production lines — engineered for precision, priced for value. Complete roll former and hydraulic flying cutoff systems, delivered on schedule.
50+
Lines delivered
98%
On-time delivery
15+
Profile types
24h
Quote turnaround
Complete Production Line
Two Machines. One System.
Every line is engineered as an integrated system. Click any machine to learn more.
01
Roll Former
Multi-station hardened roll forming mill for C, Z, U, hat, and custom profiles. 8–24 stations available.
View details →
02
Hydraulic Flying Cutoff
PLC-synchronized flying die press. Cuts to exact length without stopping the line. ±1/32 in. accuracy.
View details →
Machine 01 — Line Component

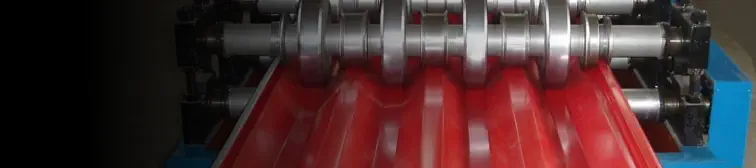

Roll Former
The heart of every Norden Engineering production line. Multi-station mills with precision-ground hardened steel rolls progressively bend flat strip into finished profiles at speeds up to 100 ft/min.
Available in 8 to 24 forming stations. Rigid welded steel frame with adjustable side frames for quick profile changeover. Variable speed drive for flexible production.
Roll stations
Drive system
Forming stations
8 – 24 stations
Max forming speed
Up to 100 ft/min
Material thickness
16 ga – 1/8 in.
Strip width
Up to 24 in.
Roll material
Hardened tool steel
Drive
Variable speed gearbox
Key Features
Hardened roll tooling
All rolls manufactured from high-grade tool steel, heat treated and precision ground. Long service life with consistent profile accuracy.
Rigid welded frame
Heavy-section welded steel base eliminates deflection at full production speed. Critical for maintaining profile straightness.
Quick-change tooling
Roll sets designed for fast changeover between profiles. Reduces downtime when switching production runs.
Variable speed drive
Electronically controlled speed from 0 to maximum — synchronized with the hydraulic flying cutoff for clean cuts at any speed.
Supported Profile Types
C / StudZ PurlinU ChannelHat / OmegaT SectionCustom Profile
Photo Gallery
Interested in this machine?
Get a quote or ask a technical question.
Machine 02 — Line Component
Hydraulic Flying Cutoff
Synchronized flying die cutoff press that cuts profiles to exact programmed length without stopping or slowing the production line. The die travels with the profile during cutting, then returns — zero interruption to output speed.
PLC-controlled with encoder feedback and programmable length memory. Hydraulic or pneumatic drive options available depending on material and cycle rate.
Length accuracy
±1/32 in.
Max line speed
Up to 100 ft/min
Min cut length
12 in.
Max cut length
40 ft
Drive
Hydraulic / Pneumatic
Key Features
Zero line interruption
The die moves with the profile during every cut stroke. Production never stops — output rate is limited only by the roll former speed.
PLC encoder synchronization
Encoder on the roll former continuously feeds position data to the PLC. The cutoff die is triggered at precisely the right position every cycle.
Programmable length memory
Store up to 99 cut length programs. Operators switch between jobs in seconds without retooling or manual measurement.
Clean square cuts
Die geometry designed for the specific profile cross-section. Produces burr-free, square ends without profile distortion.
